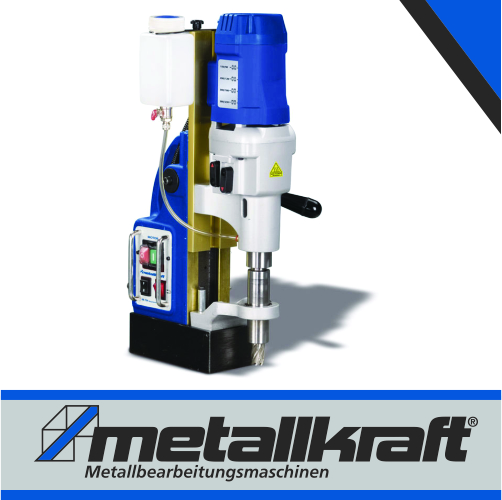

MAGNETIC BASE DRILLING MACHINE 75MM

Magnetic drilling machine

Max. drill Ø / Core drilling	75 mm
Max. drilling depth / Core drilling	50 mm
Max. drill Ø / Full drilling directly mounted	32 mm
Max. drilling depth / Full directly mounted	150 mm
Max. drill Ø / Full drilling adapter and drill chuck	16 mm
Max. drilling depth / Full drilling adapter and drill chuck	110 mm
Spindle chuck	MK 3
Weldon shaft holder	19 mm
Speed under load	90 / 120 / 180 / 230 rpm
Motor output	2 kW
Electrical connections	230 V
Phase(s)	1 Ph
Kind of current	~
Mains frequency	50 Hz
Magnetic holding force	32000 N
Magnetic foot dimensions	200 x 100 mm
Max. dimension	330 x 125 x 476 mm
Weight	24.8 kg
Sound pressure level	97 dB(A)
Sound power level	110 dB(A)
Uncertainty of measurement K	3 dB(A)
Vibration

High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
For core drills with 19 mm Weldon shaft
Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
Device is earthed and double isolated, hence ideal for building sites
High magnetic holding force
Highest-quality design
The coolant is routed through the drill
Conversion from core to full drilling in just a few actions
Safe and reliable function

Special features MB 754

Features:
